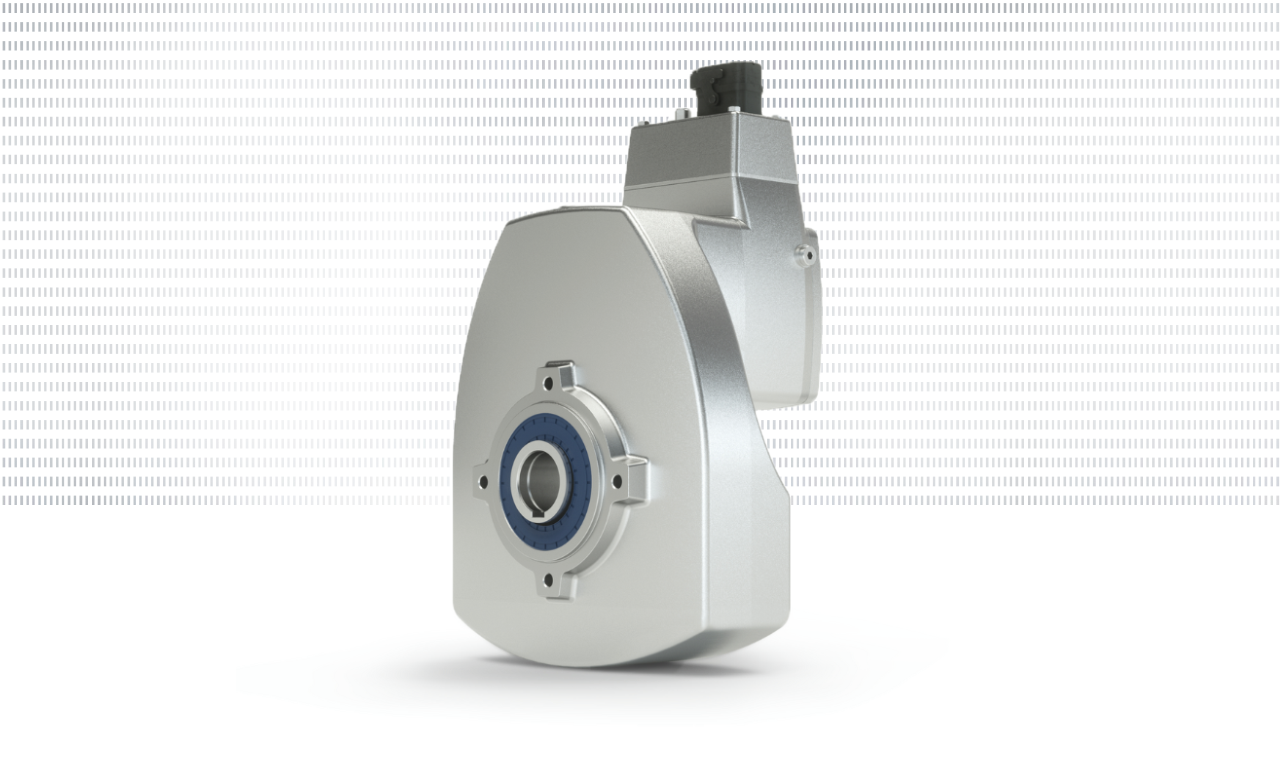

DuoDrive
Two become one.
DuoDrive is a revolutionary integrated gear unit/motor concept in hygienic wash-down design. It combines the high-efficiency IE5+ motor and a single-stage helical gear unit in one housing. Thanks to its optimised system efficiency, high power density and very low noise emissions, it is especially suitable for users in the fields of intralogistics, food and pharmaceutical industries. Together with its simple plug-and-play commissioning, the complete DuoDrive solution results in a significant reduction in Total Cost of Ownership (TCO) compared to other drive systems.
- Power range: 0.35–3.0 kW
- Extremely high system efficiency
- Compact wash-down design
- Maintenance reduction
- System solution for simple commissioning and plug & play

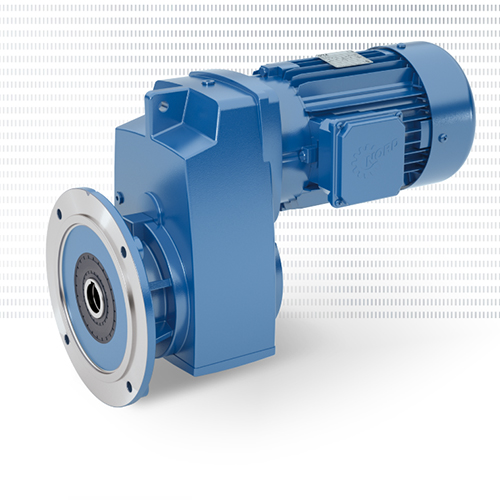

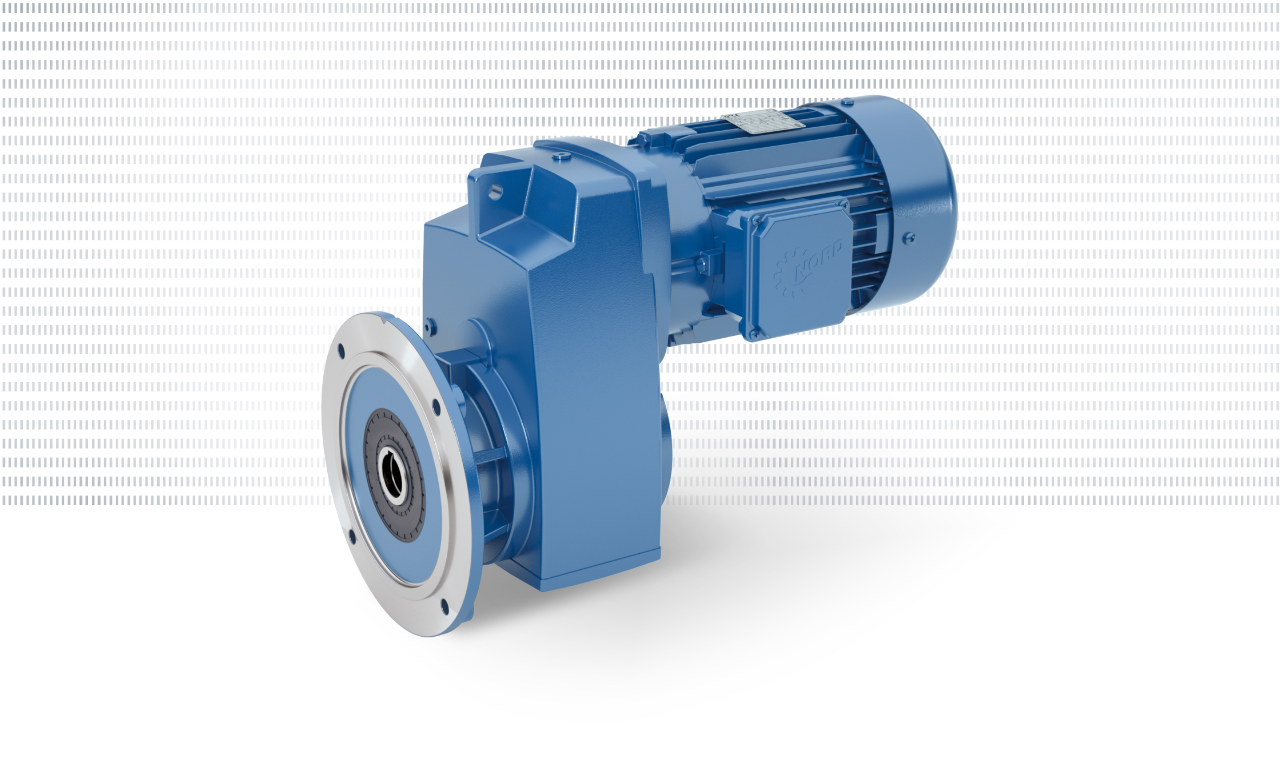

UNICASE parallel gear motor
Slim and powerful
- Slim design for space-saving installation
- Robust grey cast iron housing
- High efficiency for low operating costs
- Various bearing concepts guarantee high axial and radial load capacities
- Quiet running
- Robust design for long life and easy maintenance
- Optional: Drywell version for mixers and agitators
- Cheap to run thanks to low maintenance
- Application-specific versions
.png)
IE5+ Ultra High-Efficiency Synchronous Motors
The new generation of NORD IE5+ synchronous motors are manufactured in-house and are especially well-suited for intralogistics. These motors feature a compact, hygienic design with smooth surfaces for high corrosion resistance and easy cleaning. A motor-integrated encoder comes standard and an integrated mechanical brake is optional. By using these motors, the number of system variants can be reduced, lowering operating and maintenance costs. They have high compatibility and are intended for use with NORD Variable Frequency Drives (wall or cabinet mounted versions only).
Highlights
- Performance: 0.5 - 5.5 HP
- Worldwide approvals and acceptance
- Flexible motor mounting: direct mounting, NEMA, IEC
Advantages
- Highest operational efficiency with IE5+ technology
- Reduction of variants through constant torque over a wide speed range
- Easy to clean and corrosion-resistant
- Fanless motor design
- Reduced TCO and fast ROI
- Non-ventilated variant (N-Design) for hygienic wash-down areas
- Ventilated variant (F-Design) with a high overload capacity
- Fully matched NORD modular system solution with gear unit, motor and variable frequency drive
- US availability
- 71 frame N design available now
- 90 frame N and F designs Q2 2022
- 71 frame F design Q3 2022
