IFAT 2022

World's Leading Trade Fair for Water, Sewage, Waste and Raw Materials Management

May 30 - June 03 2022, Munich
Hall A1,  Booth A314

Get your free ticket

IFAT 2022

IFAT 2022 will take place from May 30 - June 03 2022 in Munich.



Visit us

You will find our innovative drive solutions in Hall A1,  Booth 314.
We look forward to seeing you!

We give you the ticket for free

You don't have a ticket yet?
Then use the form on the right to conveniently request your code for a free ticket.

Get your free ticket!

Trade_Show_Maxxdrive_500x500px

MAXXDRIVE™  Industrial Gear Units

The solution for high requirements and heavy-duty applications.

nsd_tuph_SPS2021_500x500px

nsd tupH Surface Treatment

The alternative to stainless steel - optimal protection for demanding environments.

IE5_SPS2021_500x500px

NORD IE5+ synchronous motor - efficient / hygienic / compact

The new generation of motors to reduce operating costs, especially suitable for washdown applications.

DuoDrive_SPS2021_500x500px

DuoDrive

The revolutionary integrated gear/motor concept with a smooth housing.

NORDBLOC.1_SK180E_500x500px

Pump applications

Highly reliable drive solution.

ex_logo_contentteaser_jpg_slider770x462

ATEX

Gas and dust explosion protection.

SK22-90LP_Standard_Alu(36902)_de-DE_1x1

Drive solutions for the waste water industry

Efficient, safe and proven drive solutions from a single source.

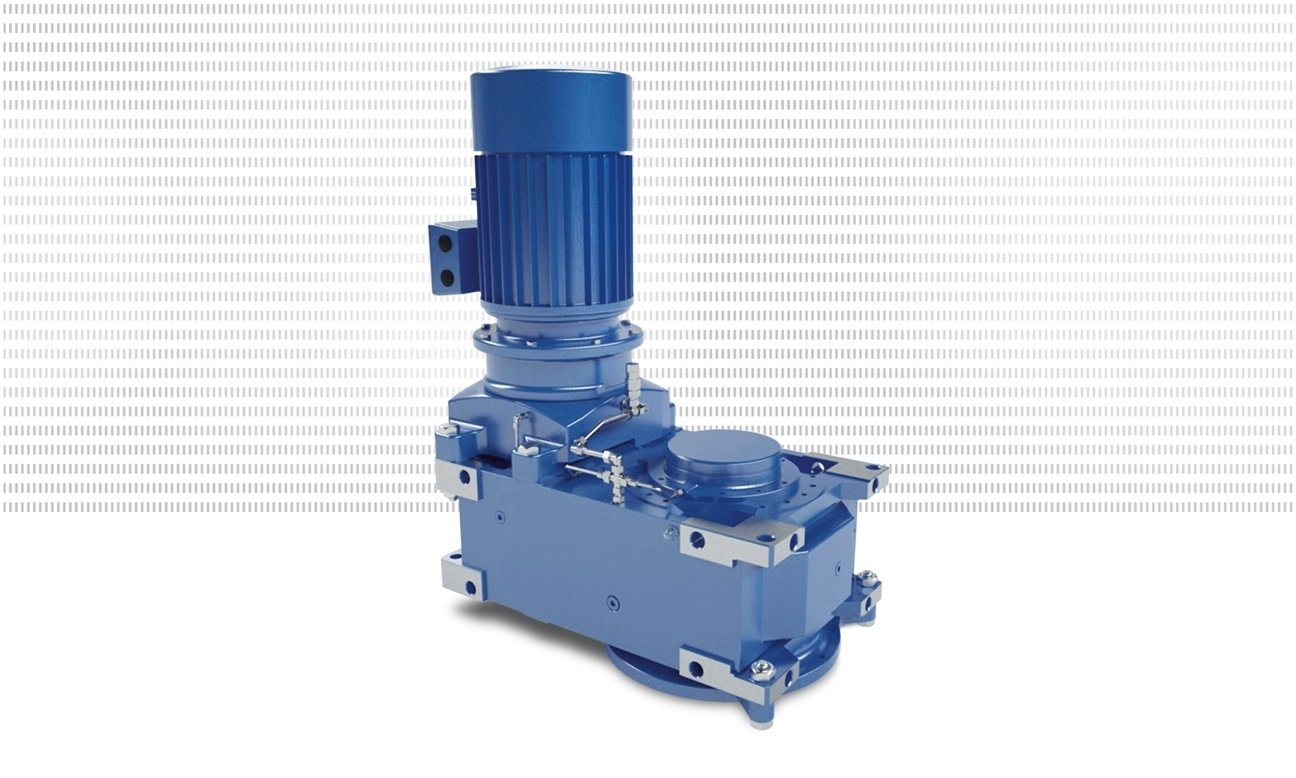

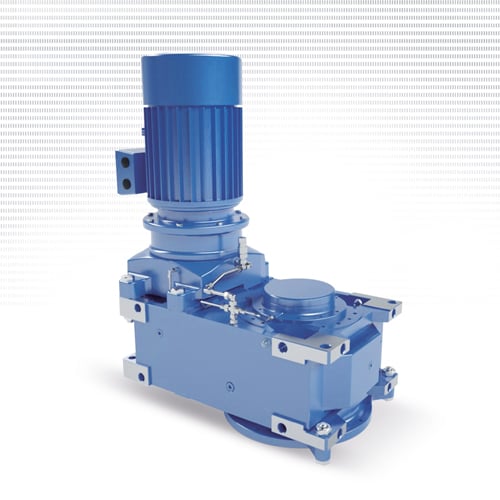

MAXXDRIVE™ Industrial Gear Units

Maxxdrive_800x480px

The high output torque of MAXXDRIVE® industrial gear units predestines them for use in heavy-duty applications such as bucket elevators, agitators, conveyor belt drives, mixers, mills, drums or crushers. Available in 11 sizes, MAXXDRIVE® units feature high-quality, low-friction bearings and a torsion-resistant, one-piece UNICASE housing to ensure excellent load capacity, long service life and quiet operation. MAXXDRIVE® units can also be equipped with a sand resistance package, a combination of various protective measures that ensure a long service life for the unit.

Advantages

  • Various output shaft bearings for optimum adaptation to the application
  • Effective cooling options available
  • Available in parallel shaft and right angle versions
  • Extensive input options and mounting designs



nsd tupH Surface Treatement

nsd tupH from NORD DRIVESYSTEMS is the perfect solution for high-performance applications and extreme conditions.


  • Beverage and food industry, especially dairies, meat, poultry and seafood processing plants, bakery industry
  • Pharmaceutical industry
  • Water and sewage systems
  • Car wash facilities
  • Offshore and coastal areas



nsd tupH from NORD DRIVESYSTEMS is an alternative to multi-layer coatings and stainless steel in highly corrosive environments.


  • complies with FDA Title 21 CFR 175.300
  • easy to clean surfaces
  • Insensitive to acids and alkalis (wide pH range)
  • No infiltration of corrosion, even if damaged
  • No flaking
  • Corrosion resistant - prevents contact corrosion
  • free from chromates
Gross_Composing_SPS2021

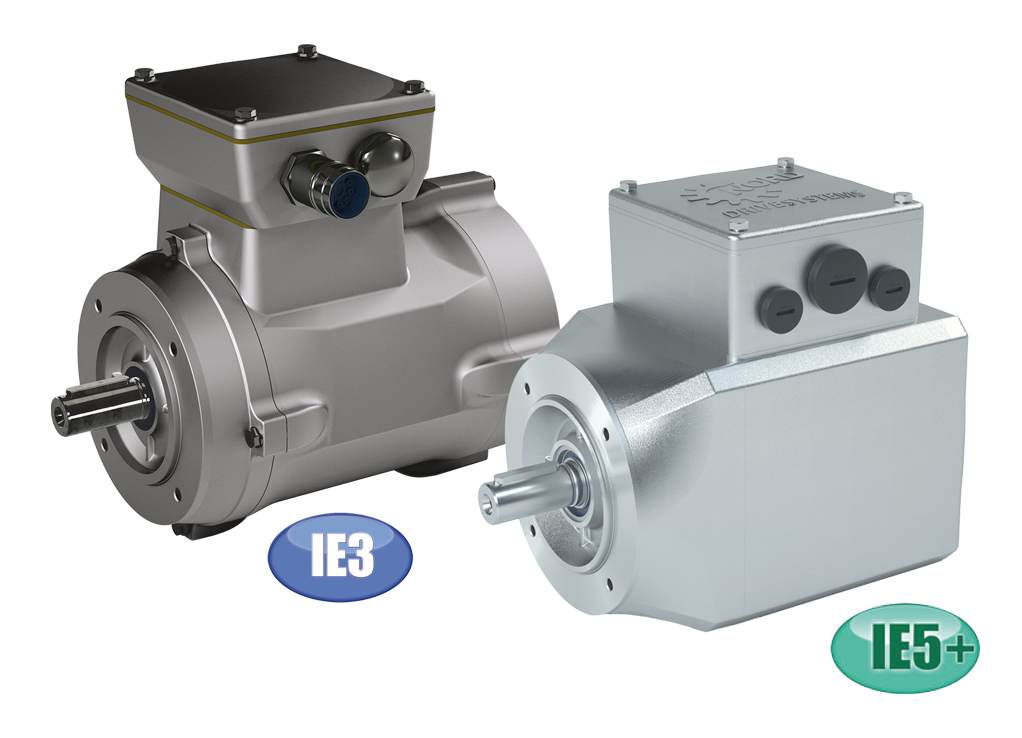

Cost reduction through efficient energy-saving motors

NORD IE5+ Synchronmotor – effizient / hygienisch / kompakt

Highlights

  • Performance: 0,35 kW - 4,0 kW
  • Efficiency class: IE5+
  • Certified for global use



Features

The new generation of NORD IE5+ synchronous motors is manufactured in-house for use in intralogistics as well as in the food and beverage industry. Our motors feature a compact and hygienic design in a very small space and thus ensure high corrosion resistance and easy cleaning.


Versions

  • Optionally available with nsd tupH and IP69K
  • Certified for global use
  • Flexible motor mounting: direct mounting, NEMA, IEC
  • Constant high efficiency over the entire adjustment range

DuoDrive Integrated Gear Unit

DuoDrive is a revolutionary integrated gear unit/motor concept with hygienic washdown design. It combines a high-efficiency IE5+ motor with a single-stage helical gear unit in one housing. Due to its optimized system efficiency, high power density, and very low noise emissions, it is extremely well-suited for airport baggage handling systems. Together with its simple Plug-&-Play commissioning, the complete DuoDrive solution results in a significant reduction in Total Cost of Ownership (TCO) compared to other drive systems.

Advantages

  • Latest generation permanent magnet synchronous motor (PMSM) integrated in a single-stage helical gear unit housing
  • Reduced Total Cost of Ownership and fast Return on Investment
  • Compact, smooth body design for durability and space savings
  • Available with IP69K surface treatment and nsd tupH™ sealed surface conversion



Gross_DuoDrive_SPS2021

Pump applications

NORD-Pumpen-Mischer-Ruehrwerke(18148)_de-DE

POWERFUL AND INTELLIGENT
SOLUTIONS IN THE FIELD OF PUMP TECHNOLOGY

  • Highly reliable drive solution
  • Cost-effective, complete drive package from a single source
  • High starting torques
  • Soft start
  • Inverter with wall and motor attachment
  • High axial and radial load capacity
  • Wide speed range
  • Available with NEMA outlet flanges



Ex-protected motors from NORD: A safe bet

1 atex patlama koruma-Jan-24-2021-04-43-06-16-PM

NORD DRIVESYSTEMS supplies customised motors and geared motors with explosion protection. Systems based on high-quality components are designed to suit the application in accordance with specific customer requirements.

Advantages:

  • Robustness
    Our electric motors with explosion protection can be used in dust atmospheres of categories 2D or 3D (zones 21 and 22) and in gas atmospheres of categories 2G or 3G (zones 1 and 2)
  • Quality
    NORD DRIVESYSTEMS works very closely with the Physikalisch-Technische Bundesanstalt (PTB) and DEKRA EXAM GmbH in order to keep the quality of production, control and products at the highest level. All motors of category 2 have a type examination certificate.
  • Know-how
    NORD DRIVESYSTEMS has many years of experience with gas and dust explosion protection and has been manufacturing explosion protection motors which meet the highest demands for over a decade.



Drive solutions for the waste water industry

Efficient

Drive solutions from NORD DRIVESYSTEMS are environmentally friendly and help to minimise CO2 emissions.

  • NORD motors meet the latest international energy requirements
  • NORD frequency inverters ensure efficient operation, improved process control and optimised motor performance
  • Service- und wartungsfreundliche NORD-Antriebe verringern Stillstandszeiten und tragen somit zu einer höheren Effizienz und Verfügbarkeit der Gesamtanlage bei


Operationally safe

Failures in wastewater plants must be avoided at all costs. Reliability is therefore at the heart of the development of our drive solutions. All components of our systems are precisely matched to each other and ensure smooth operation.

  • AUTOVENT ensures leak-free operation
  • Biodegradable oils are available
  • High-precision manufactured gear wheels are used
  • The gearboxes are exceptionally robust, operate very quietly and achieve a particularly long service life
  • NORD frequency inverters protect the drive system electronically and are able to visualise the operating data


Proven

The reliability and cost-effectiveness of NORD drive solutions have been proven in the wastewater industry worldwide.

  • We offer you various options for reinforcing the output shafts
  • Optionally available is an increased bearing distance, so that the forces on the bearings are reduced and the service life is increased
  • Use of corrosion-resistant shaft material
